PE Column Pipes For Submersible Pumps
These PE column pipes have been specially designed and are manufactured under stringent quality checks. They are tested to withstand system loads comprising the weight of the pump, water, and pipe weight with adequate factor of safety. Due to the unique design of square threads, they can withstand considerable shock and jerk loads during operation. PE column pipes supplied with separate couplers are integrally locked with the pipes. Couplers are locked with the pipes using a wire lock or using special adhesives. Supreme PE Column Pipes for Submersible Pumps offer many advantages like lightweight, high tensile load capacity, leakproof joints, and long life making them very economical. These provide a much better option than conventional metal pipes. These PE column pipes are available in 25 to 100mm(1" to 4") dia in different classes.
PE column pipes are available from 32 to 110mm sizes in PN 4 and PN 6 pressure classes, conforming to IS 4984. These pipes are available in the form of coils from 50 to 500m lengths.
FILTER
No products available.
Special compound - Supreme column pipes are manufactured from specially designed uPVC compound to make them sufficiently strong against loads and pressure that they may encounter during installation and use.
Light weight - Supreme column pipes are light in weight enabling easy and economical transportation.
Hygienic - As uPVC is immune to galvanic and electrolytic erosion, both pipes and water remain unaffected. These pipes can be installed in all types of acidic or alkaline mediums which adversely affect metal pipes.
High tensile load capacity - Unique square threads made on CNC machines provide sufficient grip and additional strength against tensile loads. Thus, the joints become fairly strong with a sufficient safety factor to take care of the load of the entire assembly along with the weight of the pump. These specially designed threads also make them suitable for easy joining and re-joining several times.
Leakproof joints - Specially designed D-type and flat rubber sealing rings provided on the threads make the joints watertight and help absorb pump vibrations.
High flow rates - Mirror smooth inner surface of the pipe and corrosion resistant property prevent scale formation which ensures a high flow rate resulting in substantial power saving.
Wide range - Supreme offers a wide range of column pipes in 25 to 100mm (1" to 4") dia in light, medium, super medium, eco standard, standard, super standard, heavy, and super heavy duty variants. These eight varieties of pipes designed for different installation depths cater to all the pump delivery head requirements. Besides pipes, Supreme offers required accessories like adapters, pump guards, jigs, loop bails, strap wrenches, etc. for installation, reinstallation, and pump safety.
Long life - Supreme pipes are manufactured with the latest technology under stringent quality control. Specially imported additives are used for higher strength and long trouble-free service life.
Overall economy - The advantages listed above result in making these pipes more economical as compared to GI pipes.
Why choose Supreme PE column pipes for submersible pumps?
Supreme’s PE column pipes for submersible pumps are engineered to deliver long-lasting performance and efficiency. These submersible pipe solutions are lightweight for easy handling and transportation, yet built with exceptional strength. Manufactured under stringent quality controls, they feature a high tensile load capacity with precision-made square threads, ensuring joints that can withstand significant shock and jerk loads.
The column pipes come with robust leak-proof joints, using D-type and flat rubber sealing rings to provide watertight performance while reducing vibrations from the pump. Their smooth, corrosion-resistant inner surface prevents scaling, ensuring consistent water flow and energy efficiency. Produced with premium raw materials and special additives, they offer a long service life, making them a cost-effective and reliable alternative to conventional metal pipes.

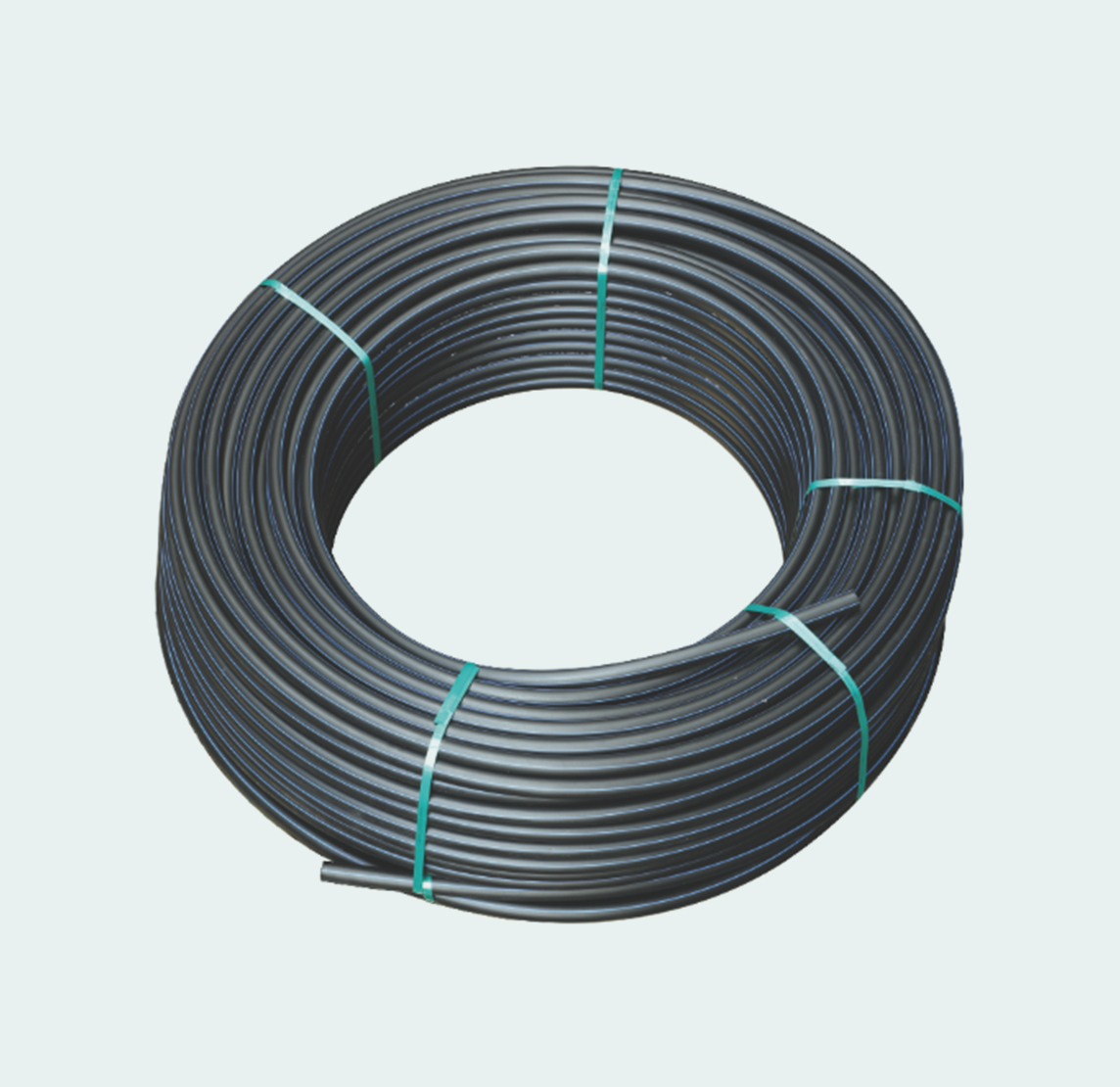

Range of Supreme PE Column Pipes (Pipe-Coil)
Supreme offers a wide range of column pipes in the pipe (coil) format to suit various application needs:
- Available in sizes from 25 mm to 100 mm (1″ to 4″) across multiple duty ratings — light, medium, super-medium, eco standard, standard, super-standard, heavy, and super-heavy — catering to different pump delivery-head requirements.
- Manufactured as per IS 4984 standards, these submersible pipe coils are available in PN 4 and PN 6 pressure classes and come in lengths ranging from 50 m to 500 m.
- The pipe (coil) series combines flexibility with durability, making it ideal for installations requiring long continuous runs without joints.
- Supplied with couplers that can be securely locked using wire or adhesives, ensuring ease of assembly and operational reliability.
- Comprehensive accessory support is available, including adapters, pump guards, jigs, loop bails, and strap wrenches, providing a complete solution for efficient installation, maintenance, and pump safety.
