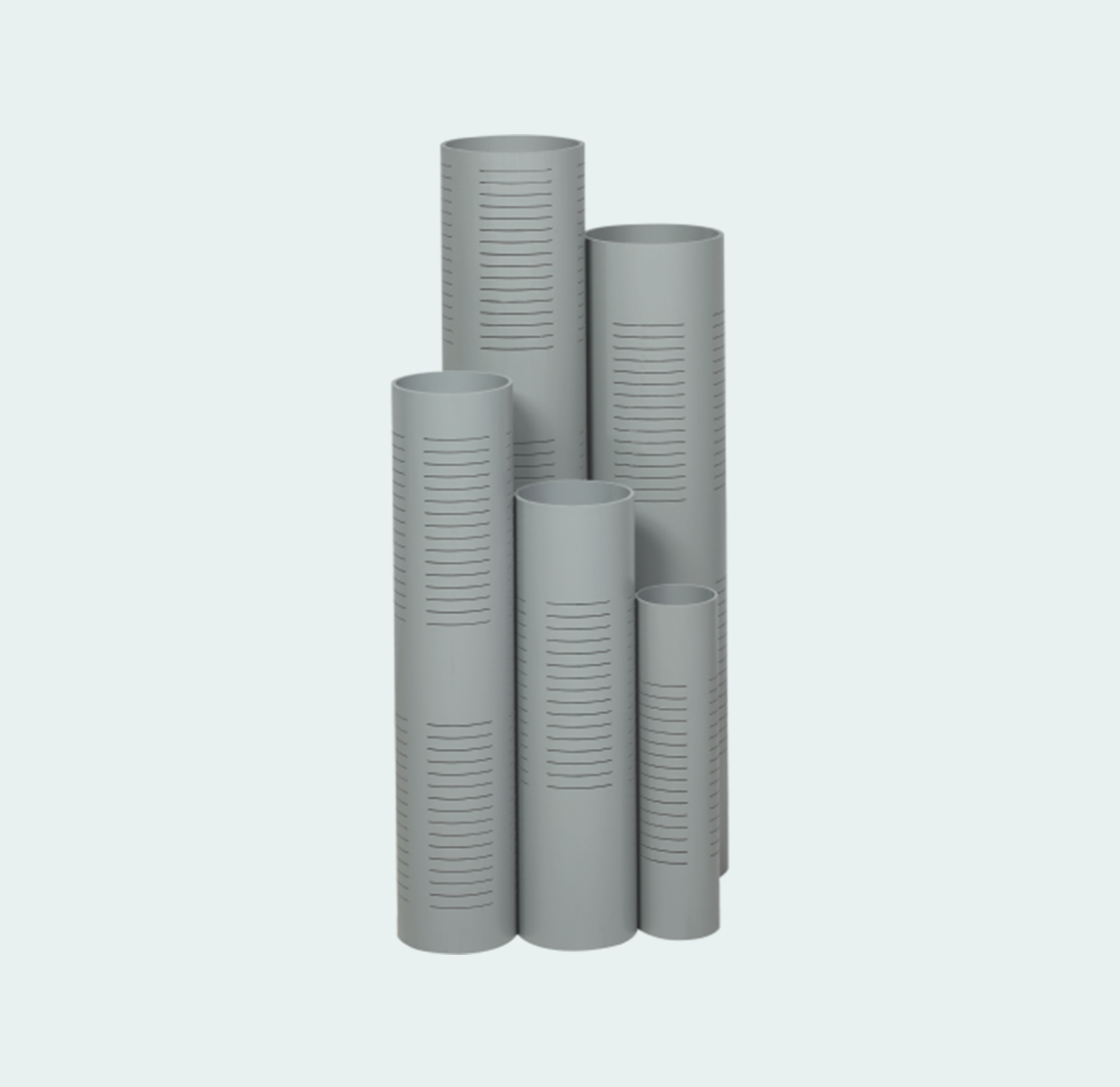

Screen Pipes / Slotted Pipes
Screen pipes or Slotted pipes are used for casing in the groundwater section to allow water to enter the well. These pipes can also be used to provide soak-ways for the stormwater/rainwater to infiltrate back into surrounding areas. Thus, we can recharge the groundwater and prevent the runoff of rainwater. These percolation pipes can also be used in rooftop rainwater harvesting in the form of a percolation pit, to recharge the groundwater. These screen pipes can also be used to control and reduce the volume of discharge of rainwater into existing main sewer systems and water courses.
Screen pipes / Slotted pipes are available from 35 to 200 mm sizes, conforming to IS 12818. These pipes are also available according to IS 4985 from 110 to 400 mm sizes.
FILTER
No products available.
Wide varieties - Supreme offers varieties of casing pipes to suit different application requirements in the borewell sector.
Excellent corrosion resistance - Unlike steel pipes, uPVC casing pipes are completely immune to corrosion and offer good resistance to aggressive elements in the soil which could cause encrustation of well screens.
Light in weight - These slotted pipes are light in weight which makes their transportation and installation easy and cheaper than conventional materials. These advantages particularly manifest themselves in rural areas where they are most needed but due to poor roads, transportation is difficult.
Quick and convenient installation - These screen pipes are provided with good quality threaded joints, due to which they can be easily assembled and installed where drilling is done by hand, with a lightweight drilling rig or even with large capacity drilling machines.
Excellent strength and stiffness - These screen pipes have excellent stiffness and meet all the mechanical properties as per IS:12818. They have excellent hydrostatic collapse pressure that is capable of withstanding the external hydraulic pressure that these screen pipes would be subjected to during the construction of the well.
Non-toxic - The material of the slotted pipe is non-toxic and hence does not impart any taste, odour or colour to water. It also does not release any harmful substances into the water which could pose health problems. It also resists bacteria, making it completely safe for drinking water.
Non-conductive - uPVC is a non-conductor of electricity eliminating any electrochemical reactions with groundwater that could cause encrustation of screens.
Long lasting - As the material is free from rusting, weathering, and chemical reactions, and with excellent mechanical properties, Supreme casing pipes last a lifetime.
Economical - Apart from all the advantages listed above, Supreme uPVC casing pipes and screens are the most economical borewell solution as compared to other materials or even alternative uPVC casing pipes available in the market.
Why Choose Supreme Screen Pipes / Slotted Pipes
Supreme offers advanced screen pipes and slotted pipes designed to meet the demanding needs of groundwater extraction, rainwater harvesting, and similar applications. These pipes are manufactured using high-quality uPVC material, ensuring long-term durability, corrosion resistance, and consistent performance. With precision slotting that allows efficient filtration while maintaining water flow, they are an ideal choice for projects that require reliability and efficiency.
Our slotted PVC pipe solutions are lightweight yet strong, easy to handle, and quick to install, making them cost-effective for large-scale applications. The pipes are engineered to provide maximum open area for water intake while preventing sand infiltration, thereby reducing maintenance needs and extending service life.
Backed by Supreme’s commitment to quality and innovation, these pipes comply with international standards, making them suitable for use in bore wells, tubewells, and various water management systems. Whether it’s for agriculture, industrial, or municipal applications, Supreme’s screen and slotted pipes ensure dependable performance and long-lasting value.
Range of Supreme Screen Pipes / Slotted Pipes
Supreme’s range of screen and slotted PVC pipe products is designed to cater to diverse project requirements, offering flexibility in size, slot design, and application suitability. The range is available in two main designs—continuous ribbed screen pipes and plain screen pipes—each tailored for specific operational needs.
1. Continuous Ribbed Screen Pipes
These pipes feature a ribbed outer surface that increases the open area and improves filtration efficiency. The rib design prevents clogging by maintaining a gap between the slot openings and the borehole wall. This makes them especially effective in sandy soil formations, where preventing fine particle entry is crucial. Their high tensile strength and corrosion resistance ensure longevity, even under continuous use.
2. Plain Screen Pipes
Plain screen pipes are suitable for applications where a smooth outer surface is preferred. They offer precise slotting patterns to ensure maximum water yield while keeping sand out. These pipes are widely used in standard bore wells and tubewells, particularly in areas where the soil formation is less prone to clogging.
3. Slotted Pipes for Rainwater Harvesting
Specially designed slotted PVC pipe models are available for rainwater harvesting systems. They enable quick percolation of rainwater into the ground while filtering out debris. These pipes help in groundwater recharge and sustainable water management, aligning with modern environmental needs.
4. Available Sizes and Slot Configurations
Supreme’s screen and slotted pipes come in a wide range of diameters, wall thicknesses, and slot sizes. The slot design is optimized to provide maximum open area without compromising pipe strength. Depending on the application, customers can choose between different slot widths and patterns to suit varying soil and water conditions.
5. Compliance and Quality Assurance
All screen and slotted PVC pipe products undergo stringent quality checks to meet both national and international standards. This ensures consistent performance, high durability, and resistance to environmental stress cracking.
6. Application Versatility
Supreme’s range is suitable for multiple sectors, including agriculture irrigation, drinking water wells, industrial water extraction, and rainwater harvesting. Their lightweight nature, ease of transportation, and fast installation capabilities make them highly preferred for both rural and urban projects.
By offering such a wide selection of slotted pipes and screen pipes, Supreme ensures that customers can find the perfect match for their project requirements—delivering efficiency, durability, and long-term performance.
